RIGEL2-MT-RS485
PV module temperature sensor with RS485 Modbus RTU output, IEC 61724-1:2021 Class A
Overview

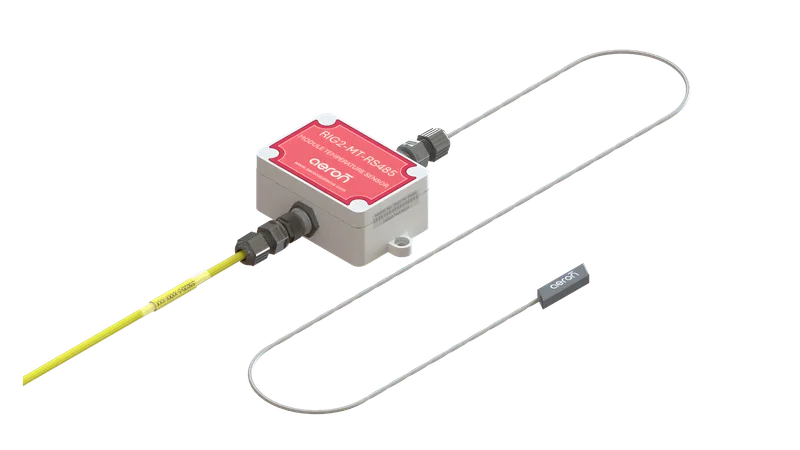

RIGEL2-MT-RS485 is the digital model of Rigel 2. It measures the back-surface temperature of a solar PV module with a Class A PT1000 element and reports it over RS485 Modbus RTU, so it connects straight to a data logger, PLC or SCADA system. It meets the accuracy needed for IEC 61724-1:2021 Class A monitoring systems.
The sensing disc is 7.2 mm thick and small enough to sit on the rear of a bifacial module without shading it. The disc is anodised aluminium, which protects the element and conducts the module's heat to it; the electronics sit in a separate ABS housing on the cable. The whole sensor is IP65.
Product code: 55020. Earlier datasheets call this model RIGEL MT1K10.
Key features
- Class A accuracy. PT1000 element to IEC 60751 Class A, ±(0.15 + 0.002|t|) °C.
- Digital output. RS485 Modbus RTU carries the reading over long cable runs without signal loss.
- Bifacial ready. Low-profile disc with minimal shadow on the module's rear side.
- Self-adhesive. High-strength adhesive pad for the module's back; no drilling or tools.
- Corrosion resistant. Anodised aluminium sensing disc and sealed IP65 body.
Applications
- Solar PV module temperature monitoring
- Surface temperature monitoring
