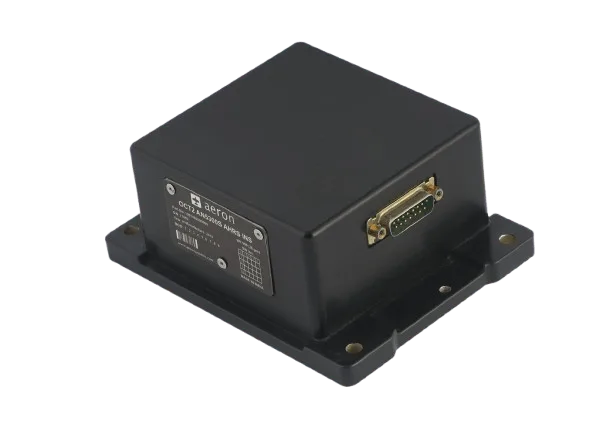

Octantis 2 AN5300S AHRS

Overview

Aeron's Octantis 2 AHRS is indigenously designed and developed for airborne applications, qualified as per MIL-STD-461E, MIL-STD-810E/F/G and DO-178B Level B (100% MC/DC coverage) standards, and accorded CEMILAC certification.

The AHRS is equipped with tactical-grade MEMS-based gyroscopes, accelerometers, and a built-in magnetometer which provide uninterrupted, high-performance attitude and heading information to airborne platforms. Aeron's proprietary parameter estimation engine, based on a multi-modal Kalman filter architecture, offers superior real-time performance in demanding applications.

The Octantis 2 AHRS is an airborne-qualified system that can be used as a primary or standby instrument for electronic flight instrumentation systems and cockpit displays in a wide range of fighter, transport and passenger aircraft — and for autonomous control applications in unmanned aerial vehicles.

The Octantis 2 AN5300S is an attitude and heading reference system designed for airborne applications. Tactical grade MEMS gyroscopes, accelerometers and a built-in magnetometer provide attitude and heading, output at 50 Hz over RS232 and RS422. Qualified to MIL-STD-461E and DO-178B Level B and accorded CEMILAC certification, it serves as a primary or standby instrument for cockpit displays.

DO-254 · DO-178B Level B · MIL-STD-461E · MIL-STD-810E/F/G · CEMILAC Certified · RTCA-DO-334

Key features

• Extended Kalman filter estimation engine
• Redundant triaxial solid-state MEMS accelerometers & gyroscopes
• External True Airspeed (TAS) aiding
• External magnetometer input
• High dynamic range up to ±450°/s and ±15g
• Functional shock sustainance 20g

Features

• High Reliability System, MIL Qualified. Airworthiness certified with redundant sensor configuration.
• Software Certified to DO-178B Level B. Independently verified and validated in accordance with DO-178B Level B with 100% MC/DC coverage.
• External True Air Speed (TAS) Aiding. Accepts external TAS data for velocity aiding to deliver unmatched performance in high dynamics of fighter aircraft.
• Communication Interface. Standard isolated Serial RS422, RS232 interfaces and isolated power supply input including lightning protection.
• Complete Continuous Diagnostics. Complete Continuous Built-In-Test provides extensive health monitoring of the device including sensor and power supply health.
• Low Power Consumption. Low-power system (< 2.5 W) based on MEMS technology ensures no need of external or internal cooling.
• External Magnetometer Interface. Facilitates choosing external magnetometer data to avoid degradation caused by nearby systems.
• TSO Compliant Performance. Benchmarked performance complying with TSO for flight instrumentation and attitude indication suitable for a wide array of aircraft.
• Low Noise Sensors. Best-in-class MEMS sensors with excellent bias instability for consistent and accurate attitude and heading data.

Applications

• Flight Data Recorder (FDR)
• Cockpit Display
• UAV Navigation
