Hardware · GNSS receivers

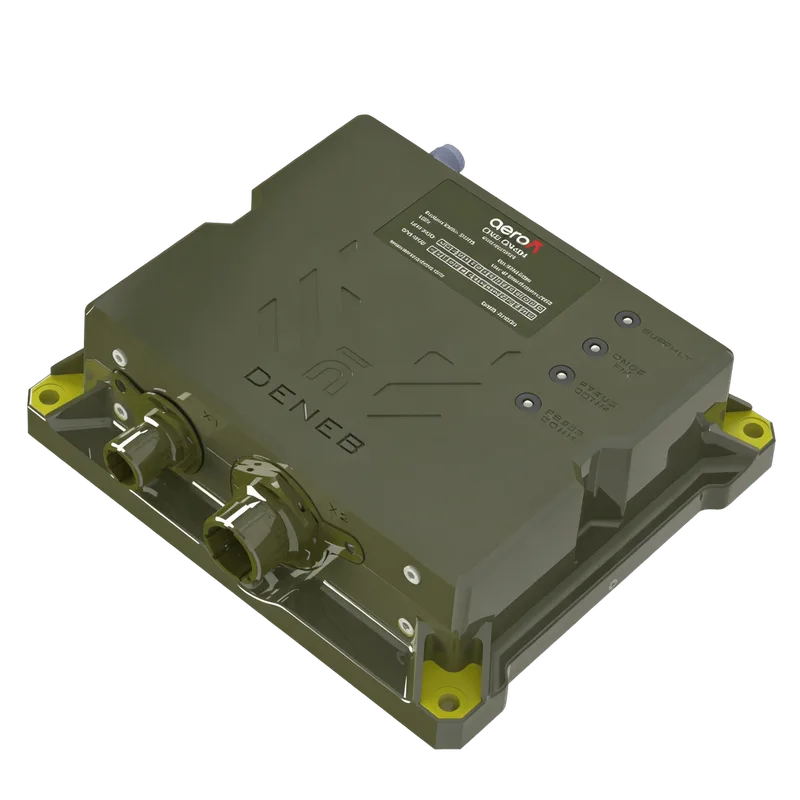

Deneb GN404
Tactical, mission-critical receiver rated to survive 500 g shock
Overview
The Deneb DNB-GN404 is a receiver built for tactical and mission-critical applications. It offers multi-frequency and multi-constellation support and delivers meter-level position in standalone mode with SBAS, and sub-centimetre position accuracy in Real Time Kinematic (RTK) mode. Qualified as per land and marine military specifications, the DNB-GN404 is suitable for applications such as survey, robotics and autonomous vehicles.
The DNB-GN404 can sustain extreme shock while consistently providing accurate position information in high shock and vibration environments. Military-grade environmental, EMI/EMC, and power compliance ensures reliable operation in extreme conditions and high EMI environments.
The Deneb, DNB-GN404 is a multi-frequency L1/L2/L5 GNSS receiver supporting GPS, GLONASS, BeiDou, Galileo, QZSS and NavIC (IRNSS), tracking over 1100 channels. It provides UTC synchronized 1PPS output, and the multi-constellation high gain GNSS antenna assures uninterrupted satellite signals — making the DNB-GN404 the right choice for high precision positioning and surveying applications.
Model code: DNB-GN404 · Product code: 28019
Key features
- Multi-Frequency, Multi-constellation GNSS L1/L2/L5 RTK GNSS receiver
- Ruggedized for Mechanical Shock
- Real-time position outputs
- Centimeter level position accuracy in RTK mode
- High Accuracy 1 PPS output
- Multiple interfaces: RS232, RS422, and Ethernet
- Rugged IP65 enclosure for harsh environments
- Power/Health, GNSS FIX, and Communication LED Indicators
Applications
- Unmanned Ground Vehicle (UGV)
- Autonomous Ground Vehicle (AGV)
- Robotics
- Armoured Vehicles
- Artillery Guns
- Surveying and Mapping
- Precision Agriculture
- Precise Time Synchronisation
