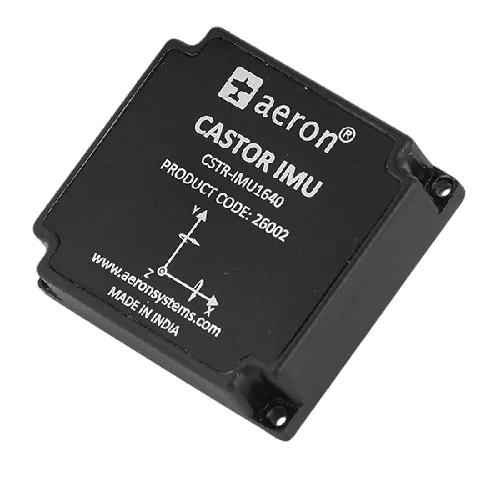

Castor IMU 1640
Miniature 6DOF IMU (OEM PCB Mounted) with SPI Interface
Overview
The Castor series IMU1640 is a high-end tactical-class inertial measurement unit consisting of a high-performance triaxial MEMS accelerometer and triaxial gyroscope built on the latest MEMS technology. A high-speed onboard processor runs superior digital signal processing algorithms to deliver control-grade inertial measurement data over a digital SPI interface.
The sensing elements of each axis are factory-calibrated for bias and misalignment and are temperature-compensated to remain usable across the full operating range. The IMU is designed to be mounted firmly on the customer's own PCB, and its rugged, modular design makes it suitable for integration with control computers and other application hardware where size is a constraint.
Model code: CSTR-IMU1640 · Product code: 26002
Key features
- High-end Tactical Gyro. Excellent 1°/hr in-run bias instability, thermal compensation, and good turn-on to turn-on repeatability.
- Digital Software Filtering. IMU1640 features configurable FIR filters with programmable taps optimising the IMU for best performance.
- Fully Calibrated over Temperature. Factory calibrated for temperature, misalignment, offsets, and scale factor errors.
- High Update Rate over SPI. Offers update rates of up to 4250 Hz and configurable bandwidth as per customer application requirements.
- High Shock Survival. IMU1640 is designed for shock survival up to 1500g, making it suitable for high dynamics applications.
- Operating Voltage. Low supply voltage requirement (3 to 3.6V DC) making it possible to power up the IMU with low voltage battery systems.
- Low Noise Sensors. Low noise and highly stable accelerometer and gyroscope sensors for high performance sensor data.
- Operating Environment. Wide operating temperature range and temperature compensation of sensors for useful performance across operating range.
- Communication. Digital SPI interface, digital inputs and outputs, diagnostics and data-ready options for integrated communication with the user controller.
Applications
- Unmanned Ground Vehicle
- UAV Control and Stabilization
- Attitude Control and Stabilization
