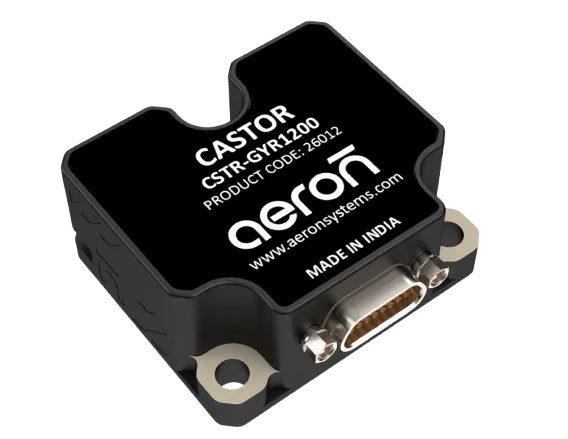

Castor GYR 1200

Overview

CSTR-GYR1200 is a high-end tactical class gyro module built around a high-performance triaxial MEMS gyroscope. A high-speed onboard processor runs digital signal processing algorithms to deliver control-grade inertial measurement data over a standard RS422 interface, running off a single +5V supply.

The sensing elements of each axis are factory-calibrated for bias and misalignment, and compensated for temperature effects across the full −40°C to +85°C operating range. Its rugged, modular design and 1500 g shock qualification make GYR1200 well suited for integration with control computers and other application hardware in guidance, navigation, and control systems.

Model code: CSTR-GYR1200 · Product code: 26012

Key features

• High-End Tactical Gyro. 0.6°/hr in-run bias instability, thermal compensation, and good turn-on to turn-on repeatability.
• Excellent Performance in Vibration. GYR1200 is qualified up to 1500 g mechanical shock, making it suitable for high-shock platforms.
• Continuous Self-Diagnostics. Built-in capabilities that allow the device to monitor its own health and functionality, alerting users to potential issues in real time.
• Low Bias Instability. The sensor's output drift (bias) remains minimal over time, leading to more stable and accurate measurements.
• Miniature Package. Compact size, low weight, high performance, with calibration, compensation, and ruggedized mounting options.
• External Trigger Input. Used for precise timing, deterministic operation, data integrity, and synchronization verification.

Applications

• Unmanned Ground Vehicle
• Drone Navigation and Control
• Guidance, Navigation and Control
