Aldebaran FOG INS-GNSS
Superior tactical Fibre-Optic Gyro based Inertial Navigation System
Overview

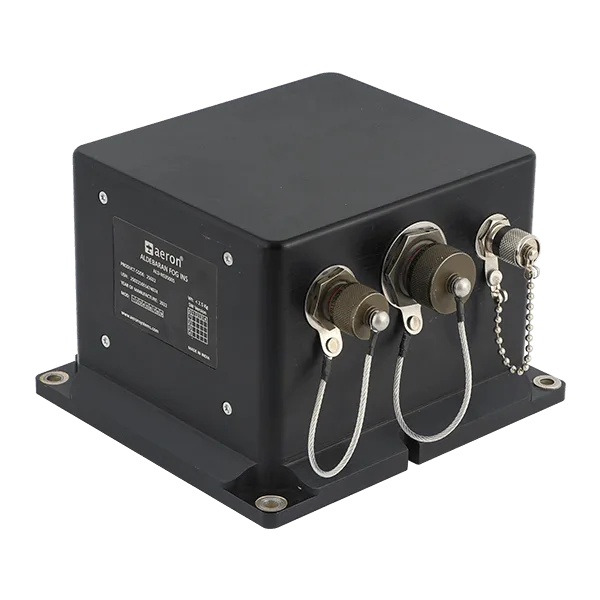

Aldebaran ALD-NS3500S is a rugged, tactical-grade Fiber Optic Gyro (FOG) based Inertial Navigation System with an integrated multi-frequency, multi-constellation GNSS receiver, delivering dependable position, velocity and attitude data across airborne, land and naval platforms.
Aldebaran ALD-NS3500S is a rugged, GNSS-aided, high performance Fibre Optic Gyro (FOG) based Inertial Navigation System. The device incorporates high-end three-axis accelerometers, three-axis fibre-optic gyroscopes, and an integrated multi-constellation GNSS receiver. The sensors are characterized and calibrated in Aeron's state-of-the-art facility. Aeron's proprietary parameter estimation engine delivers fast alignment and tactical class navigation performance in a matter of minutes.
The ALD-NS3500S model has a multi-frequency (L1/L2/L5), multi-constellation GNSS receiver — including IRNSS — with multiple tracked channels and high signal sensitivity. The Aldebaran series INS offers superior pure-inertial performance in short-term GNSS outages, and external air data, velocity, and position aiding can also be provided to the system.
ALD-NS3500S is suitable for positioning and pointing in airborne, land & naval applications. Aldebaran combines top-of-the-range tactical sensors — closed-loop 0.1°/hr (BI) fibre-optic gyros and <1 mg (long-term bias) accelerometers — to deliver dependable GNSS-denied performance in rough, off-road, and bumpy terrain. The gyros hold their bias under vibration, and Aeron's proprietary sensor fusion algorithms deliver superior navigation and position performance across GPS, GALILEO, and NAVIC constellations.
MIL-STD-810G · JSS-55555 · MIL-STD-461E · MIL-STD-1275E · MIL-STD-704D
Key features
- Extended Kalman filter sensor fusion engine
- Accepts external aiding data
- Tactical-class IMU with <0.1°/hr gyro bias instability
- Centimeter-level position accuracy with RTK
- Multi-constellation L1/L2/L5 GNSS with IRNSS
- Superior tracking robustness under heavy mechanical shocks or vibration
- Isolated interfaces and power supply
- Complies with MIL-STD-810G, JSS-55555, MIL-STD-461E, MIL-STD-1275E and MIL-STD-704D
Features
- High Reliability System. MIL-qualified INS-GNSS system for tactical performance in high vibration environments.
- Closed-Loop FOG & Tactical MEMS. Excellent IMU performance under vibration with closed-loop fibre-optic gyroscopes and high-performance accelerometers at <15 μg bias instability.
- GNSS-Denied Performance. Suitable for land navigation in GNSS-compromised scenarios, delivering 0.5% distance-travelled drift even in long-term GNSS outages with external aiding.
- Odometer & External Aiding. Accepts ground speed aiding over CAN and wheel-pulse odometer, plus external position, speed, and heading alignment inputs.
- Isolated Interfaces & Power Supply. Protects device electronics from electromagnetic interference and transients on power and data lines.
- Communication. Wide array of isolated interfaces and protocols, including Binary and NMEA over serial RS422 and RS232.
- Device Diagnostics. Complete and continuous built-in test (CBIT) to monitor and report system and sensor health parameters.
- External Aiding. Accepts external position, speed, and heading aiding input from a master or external reference system.
- NavPro Sensor Fusion Algorithm. Aeron's proprietary EKF-based sensor fusion engine delivers exceptional performance in GNSS-denied conditions.
Applications
- Marine Navigation
- Armored Vehicle Navigation
- Autonomous Vehicle Navigation
- Mapping and Surveying
